Vacuum table 3030 GR

Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Vacuum table 3030 GR
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: VT3030-GR
  • Weight: 6.40kg
  • Dimensions: 316.00mm x 316.00mm x 27.00mm
US$ 390.00
US$ 650.00

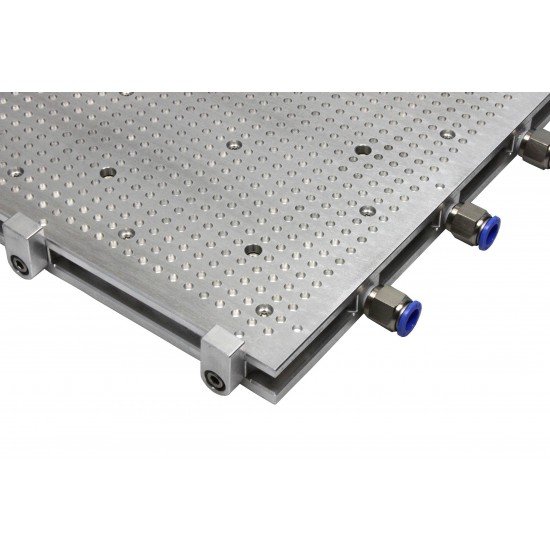

The vacuum table 3030 GR excels in flexibility with gapless modularity. The inclusion of a 100 mm thread grid at it's suction surface, allows the attachment of clamps and vices without having to remove the table from your host machine.

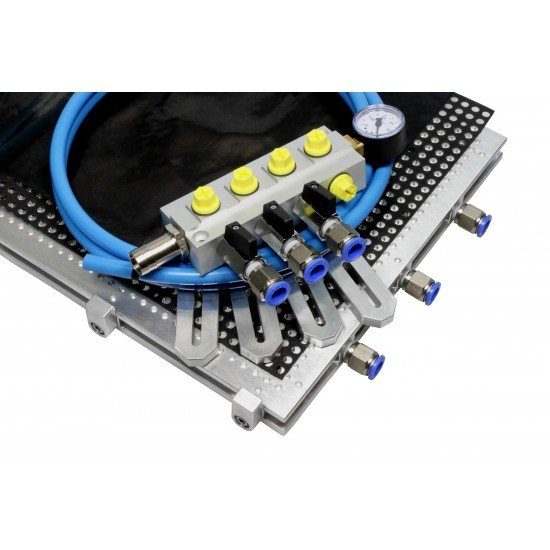

Items included
ItemQuantity
Vacuum manifold1
Hole rubber mat (10 mm grid)1
Rubber cover mat1

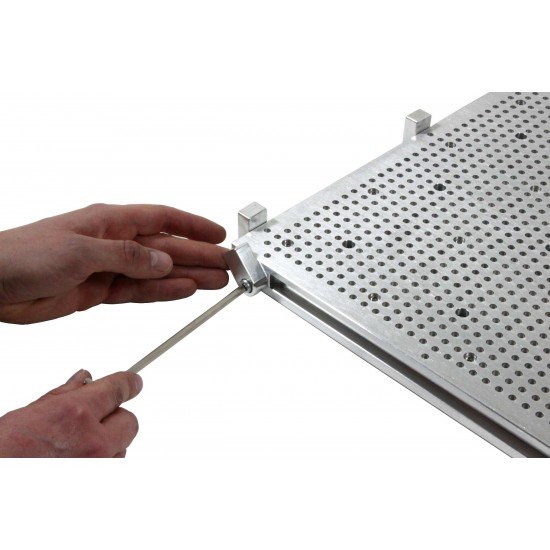

Clamps4
Set of connecting hose1

Vacuum table specifications
MaterialCast Aluminium
Clamping area (mm)316 x 316
External dimensions (mm)316 x 316 x 27
Grid spacing10 x 10 mm
Threaded bushings9 (M8)
Vacuum sections3
Thread grid100 x 100 mm
Hose connections12 mm

Recommended vacuum generators and pumps for use with the GR Series of vacuum tables

ProductMinimumRecommended
VT2012 GRVenturi VT-VE 3DST 8
VT3020 GRDST 8DST 16
VT5020 GRDST 8DST 16
VT4030 GRDST 16DST 25
VT5040 GRDST 16DST 25
VT6040 GRDST 16DST 25
VT7050 GRDST 25DST 40
VT6050 GRDST 25DST 40
VT10050 GRDST 40DSN 65
VT10060 GRDST 40DSN 65
