Vacuum table 5030 GR

Pay in instalments or apply for 30 days credit. Find out more.

Model: VT5030-GR
Weight: 11.00kg
Dimensions: 516.00mm x 316.00mm x 27.00mm

US$ 920.00

Qty

Add to Cart

Buy Now Ask a question

Compare

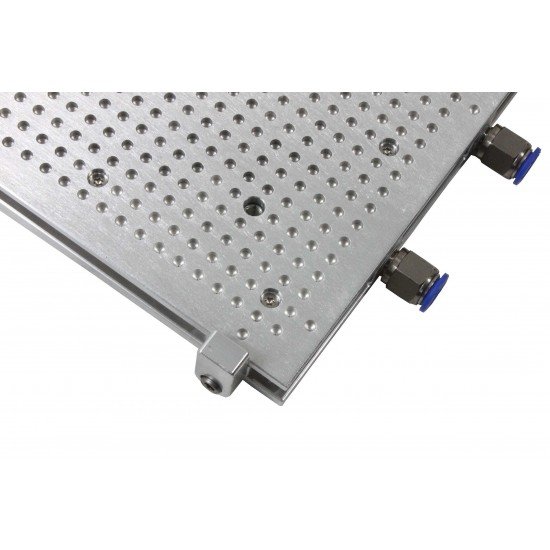

The vacuum table 5030 GR excels in flexibility with gapless modularity. The inclusion of a 100 mm thread grid at it's suction surface, allows the attachment of clamps and vices without having to remove the table from your host machine.

Items included
Item	Quantity
Vacuum manifold	1
Hole rubber mat (10 mm grid)	1
Rubber cover mat	1
Clamps	4
Set of connecting hose	1

Vacuum table specifications
Material	Cast Aluminium
Clamping area (mm)	516 x 316
External dimensions (mm)	516 x 316 x 27
Grid spacing	10 x 10 mm
Threaded bushings	10 (M8)
Vacuum sections	2
Thread grid	100 x 100 mm
Hose connections	12 mm

Recommended vacuum generators and pumps for use with the GR Series of vacuum tables

Product	Minimum	Recommended
VT2012 GR	Venturi VT-VE 3	DST 8
VT3020 GR	DST 8	DST 16
VT5020 GR	DST 8	DST 16
VT4030 GR	DST 16	DST 25
VT5040 GR	DST 16	DST 25
VT6040 GR	DST 16	DST 25
VT7050 GR	DST 25	DST 40
VT6050 GR	DST 25	DST 40
VT10050 GR	DST 40	DSN 65
VT10060 GR	DST 40	DSN 65

Submit your custom design & specifications below

Mats

Mats supplied in a variety of types and sizes suitable for use with our hol..

View Products

Sealing cord

Neoprene rubber sealing cord, 4 mm in diameter, suitable for our grid..

View Products

Vacuum manifold

Vacuum manifold in various designs and sizes for easy mounting on the frame..

View Products

Clamping Booster

Clamping booster increases the clamping force of our vacuum tables and can ..

View Products

Connecting hoses

Various sizes of connecting hose suitable for our vacuum tables and vacuum ..

View Products
