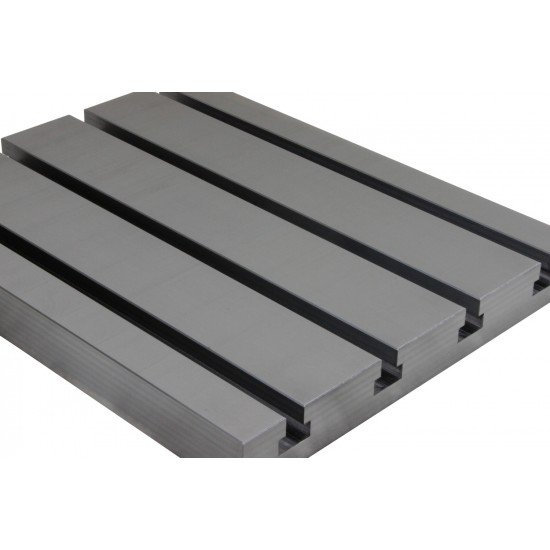

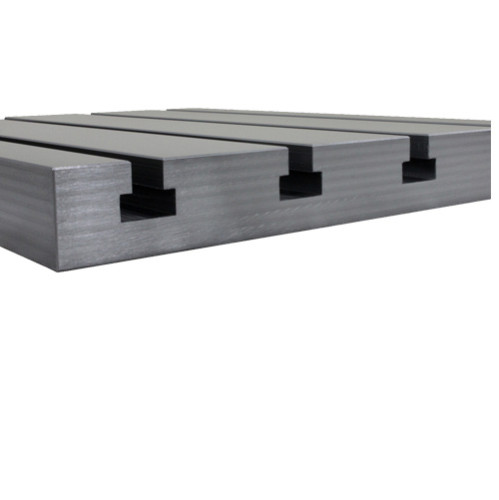

Big Block Steel T-slot plate

Big Block Steel T-slot plate
Big Block Steel T-slot plate
Big Block Steel T-slot plate
Big Block Steel T-slot plate
Big Block Steel T-slot plate
Big Block Steel T-slot plate
Big Block Steel T-slot plate
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: STNPBIG
  • Weight: 15.00kg
US$ 230.00

Available Options

Big block t-slot plates made from C45 tooling steel with a profile height of 50 mm (2 inches).

With a smooth finished underside the big block plate can be suctioned onto a vacuum table or directly attached to your host machine in the usual way.

Making it easy to mount with vices, clamping towers, mounting angles and anything else you wish to clamp.

Need a custom big block? Send us a message using the custom form or email us at custom@cnc-clamping.com

Details
Tolerance+/- 0.01 mm / 150 mm
Profile height50 mm (2 inches)
T-slot spacing50 mm (2 inches)



Aluminium tslot plate measurements
A8 mm
B7.5 mm
C10 mm
D50 mm
E25 mm
F16 mm
H50 mm

Submit your custom size & specifications below
