Vacuum table 4030 RAL PRO

Pay in instalments or apply for 30 days credit. Find out more.

Model: VT4030-RAL-PRO
Weight: 10.00kg
Dimensions: 400.00mm x 300.00mm x 20.00mm

US$ 890.00

Qty

Add to Cart

Buy Now Ask a question

Compare

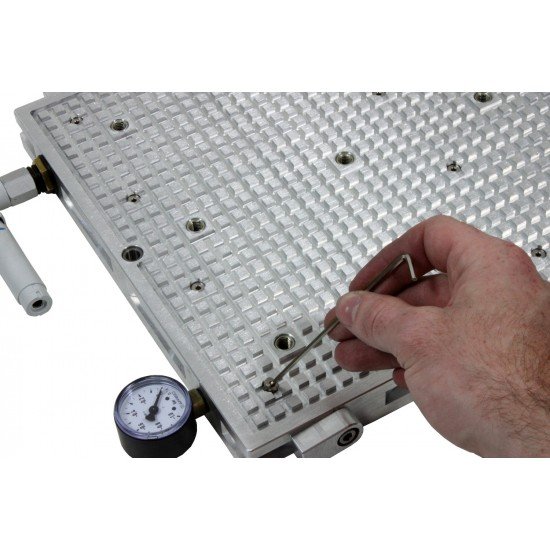

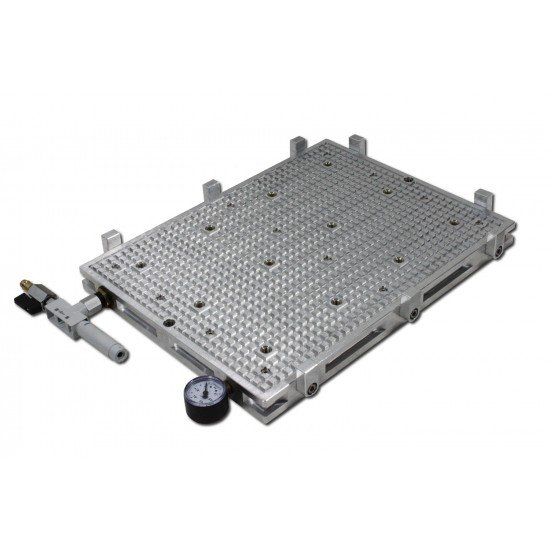

The 4030 RAL PRO Series grid vacuum table is an extension to our popular RAL Series with manifold and venturi included. Making it even easier to mill your workpieces quickly.

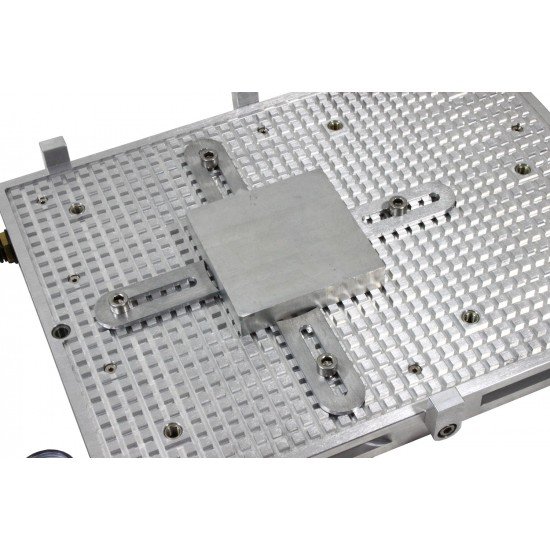

Face milled from both sides and fit for use with coolant the RAL PRO Series features workpiece stop collars and a 100 x 100 mm M8 steel thread grid.

Includes
Item	Quantity
Venturi generator	1
Workpiece stop clamps	4
Workpiece stop bar	2
PVC adapter mat	1
Set of connecting hose	1
Rubber sealing cord	10 metres

Vacuum table specifications
Material	Cast Aluminium
Clamping area (mm)	400 x 300 x 20
External dimensions (mm)	400 x 300 x 20
Vacuum points	12
Grid spacing	10 mm
