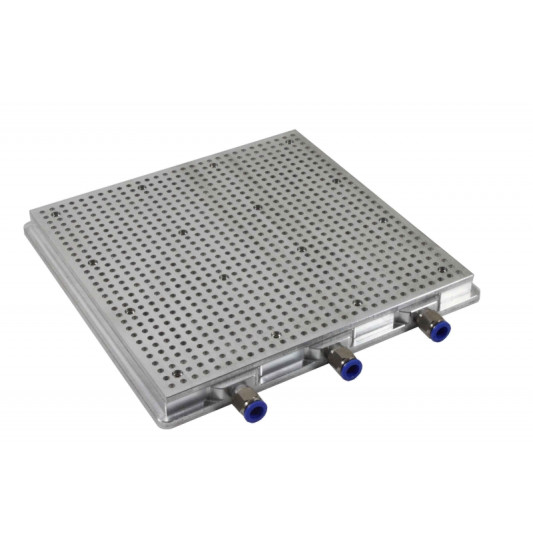

Vacuum table 3030 GAL

Pay in instalments or apply for 30 days credit. Find out more.

Model: VT3030-GAL
Weight: 10.00kg
Dimensions: 300.00mm x 300.00mm x 27.00mm

US$ 590.00

Qty

Add to Cart

Buy Now Ask a question

Compare

The 3030 GAL Series hole grid vacuum table is of vibration absorbing construction made from 100% cast aluminium.

Combined with high stability and switchable vacuum sections the GAL Series vacuum tables can be subdivided into several chambers.

The included holed rubber mat ensures a seal around your workpiece with a through milling depth of less than 0.2 mm.

Includes
Item	Quantity
Venturi distributor	1
Hole rubber mat (10 mm grid)	1
Cover mat	1
Set of connecting hose	1

Vacuum table specifications
Material	Cast Aluminium
Clamping area (mm)	300 x 300
External dimensions (mm)	316 x 316 X 27
Vacuum sections	3
Raster	10 x 10 mm
Drill hole	0.3 mm
Connections	12 mm
Trimming spare	4 mm

Recommended vacuum generators and pumps for use with the GAL Series of vacuum tables

Product	Minimum	Recommended
VT2012 GAL	Venturi VT-VE 3	DST 8
VT2016 GAL	Venturi VT-VE 3	DST 8
VT3015 GAL	DST 8	DST 16
VT2824 GAL	DST 8	DST 16
VT3020 GAL	DST 8	DST 16
VT3030 GAL	DST 8	DST 16
VT4030 GAL	DST 16	DST 25
VT4040 GAL	DST 16	DST 25
VT5030 GAL	DST 16	DST 25
VT5040 GAL	DST 16	DST 25
VT5040 GAL	DST 16	DST 25
VT5050 GAL	DST 16	DST 25
VT6030 GAL	DST 16	DST 25
VT6040 GAL	DST 16	DST 25
VT6050 GAL	DST 25	DST 40
VT6060 GAL	DST 25	DST 40
VT7545 GAL	DST 25	DST 40
VT7050 GAL	DST 25	DST 40
VT7550 GAL	DST 25	DST 40
VT8040 GAL	DST 25	DST 40
VT8050 GAL	DST 25	DST 40
VT8060 GAL	DST 25	DST 40
VT10060 GAL	DST 40	DSN 65
