Liquid ring pump 50 ST

Liquid ring pump 50 ST
Liquid ring pump 50 ST
Liquid ring pump 50 ST
Liquid ring pump 50 ST
New Model
Liquid ring pump 50 ST
Liquid ring pump 50 ST
Liquid ring pump 50 ST
Liquid ring pump 50 ST
Liquid ring pump 50 ST
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: LSVU50-ST
  • Weight: 70.00kg
US$ 3,580.00

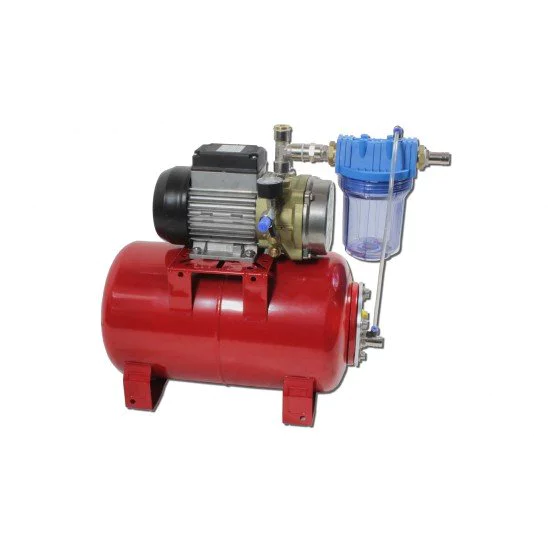

The liquid ring pump 50 ST provides a liquid volume output of 550 litres per hour.

Ideal for vacuum clamping setups where coolant is being used, recirculation of the liquid ensures constant cooling with separation of surplus swarf automatically.

Compression is achieved by feeding the liquid (usually water) into the pump and by centrifugal acceleration it forms a moving ring against its inside casing. This ring creates seals in the spaces between its vanes which form compression chambers.

Available in 230 V and 400 V versions.

Specifications
Achievable vacuum90%
Liquid volume output550 Litres / hour
Power supply800 W
Nominal displacement / Air volume flow47 m3/h
Power supply0.75 Kw 3~ 400 V 50 Hz
Engine speed2800 rpm
Weight33 Kg
